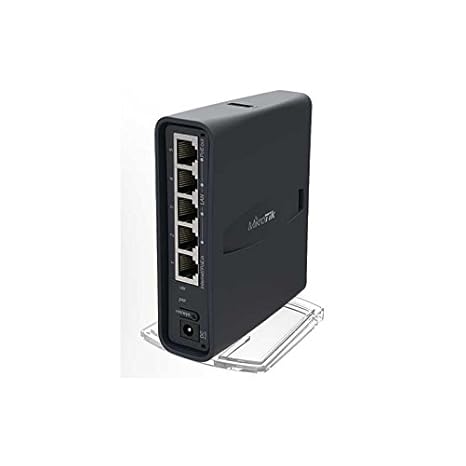

- MikroTik Routerboard hAP AC Lite User Guide file is attached below. For latest firmware, tools and user guide updates please refer to MikroTik Support page for hAP AC. HAP lite classic. The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
- Feb 04, 2017 Mikrotik hEX RB750Gr3 MikroTik RB2011iLS-IN MikroTik Cloud Router CRS109-8G-1S-2HnD-IN hAP lite hAP hAP ac lite tower hAP ac mAP lite mAP wAP RB951Ui-2HnD RB951G-2HnD RB2011UiAS-2HnD-IN Mikrotik.
- Manual Mikrotik RB951Ui-2HnD. View the Mikrotik RB951Ui-2HnD manual for free or ask your question to other Mikrotik RB951Ui-2HnD owners. Mikrotik HAP ac lite Mikrotik cAP ac tutorial; questions; specs; fotos; ManualSearcher.com. Looking for a manual? ManualSearcher.com ensures that you will find the manual you are looking for in no time.
Specifications
| Details |
|---|
| Product code | RB952Ui-5ac2nD-TC |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 34 x 119 x 98mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $49.95 |
Powering
| Details |
|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 8 W |
Jul 25, 2018 Hi, I have acquired some hap ac lite's for reconditioning. After completing the reset procedure and a hard reset (300s) I have got it back to a stage on Winbox with it showing the MAC address IP of 0.0.0.0, Idenity - preconfig, Version 6.37.3 and board RB952Ui-5ac2nd. Manual Mikrotik hAP mini. View the Mikrotik hAP mini manual for free or ask your question to other Mikrotik hAP mini owners. Mikrotik HAP ac lite Mikrotik cAP ac. Mikrotik cAP lite Mikrotik RB951G-2HND Mikrotik RBWAP2ND. MikroTik is a Latvian company which was founded in 1996 to develop routers and wireless ISP systems. MikroTik now provides hardware and software for Internet connectivity in most of the countries around the world. View & download of more than 90 Mikrotik PDF user manuals, service manuals, operating guides. Network router user manuals, operating guides & specifications. Installation And Use Manual: hAP ac lite: Quick Setup Manual And Warranty Information: hAP ac2: Manual.
Wireless
| Details |
|---|
| AC speed | AC750 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details |
|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Hap Lite Mikrotik Setup Steps
Certification & Approvals
| Details |
|---|
| Certification | CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 23 | -93 |
| 54MBit/s | 20 | -75 |
| MCS0 | 23 | -93 |
| MCS7 | 19 | -71 |
| MCS9 | 16 | -63 |
Included parts
Hap Ac Mikrotik Configuration
Brochure
Block Diagram
Declaration of conformity
FCC Grant of Certification (5GHz)
High resolution images
Mikrotik Hap Ac Routerboard
Ethernet test results
Mikrotik Hap Lite Configuration
| RB952Ui-5ac2nD-TC | QCA9531 (650Mhz) 100M all port test |
| Mode | Configuration | 1518 byte | 512 byte | 64 byte |
| kpps | Mbps | kpps | Mbps | kpps | Mbps |
| Bridging | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 217.0 | 111.1 |
| Bridging | 25 bridge filter rules | 40.6 | 493.0 | 70.1 | 287.1 | 70.9 | 36.3 |
| Routing | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 200.8 | 102.8 |
| Routing | 25 simple queues | 40.6 | 493.0 | 79.6 | 326.0 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 40.6 | 493.0 | 42.2 | 172.8 | 43.2 | 22.1 |
